Why Choose HPS-PES-S-T12?
• Excellent Abrasion Resistance
Durable woven construction helps protect hydraulic hoses from friction, rubbing, and everyday surface wear.
• Flexible & Easy to Install
Flexible tubular design adapts to curved hose routing, allowing convenient installation without unnecessarily restricting movement.
• Durable & Stable Construction
Uniform textile construction maintains structural integrity during regular use, providing consistent external mechanical protection.
• Customizable for Different Applications
Available in various diameters, wall thicknesses, colors, and cut lengths to meet different hydraulic hose protection requirements.

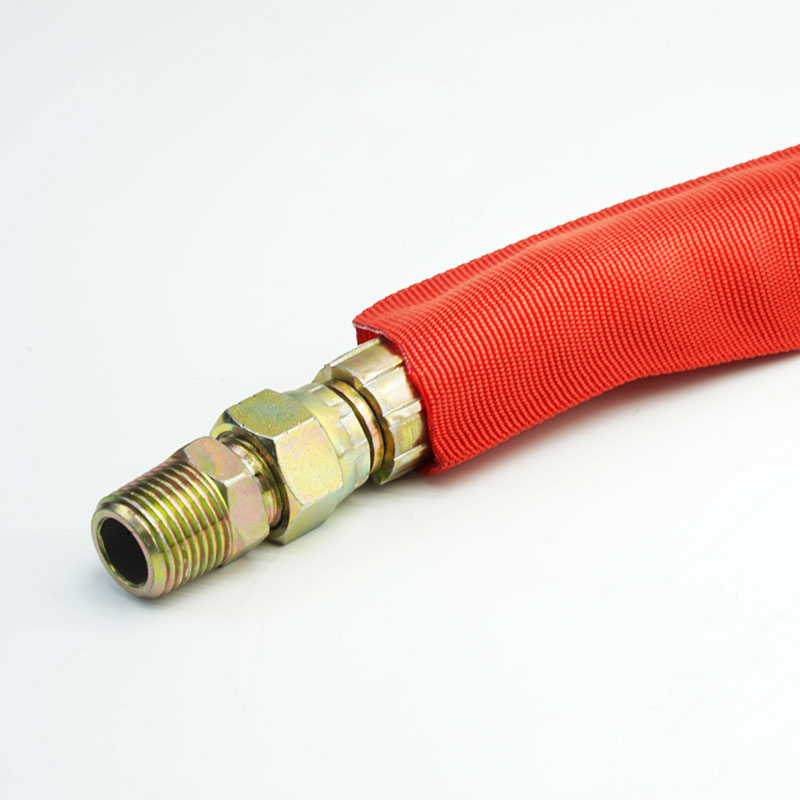

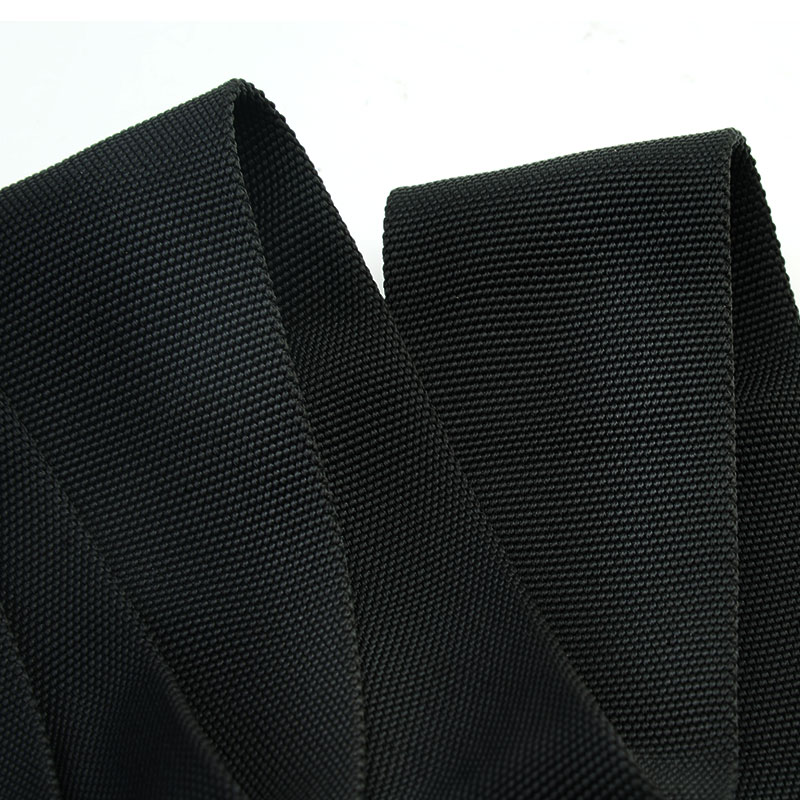

1. Tubular Woven Construction
Seamless hollow woven structure surrounds hydraulic hoses, providing consistent coverage along the hose route.
2. Abrasion and Friction Protection
Helps reduce surface wear caused by contact with brackets, machine frames, adjacent hoses, and other surrounding components.
3. Flexible Hose Routing
Adapts to curved hose paths and practical installation layouts without unnecessarily restricting normal hose movement.

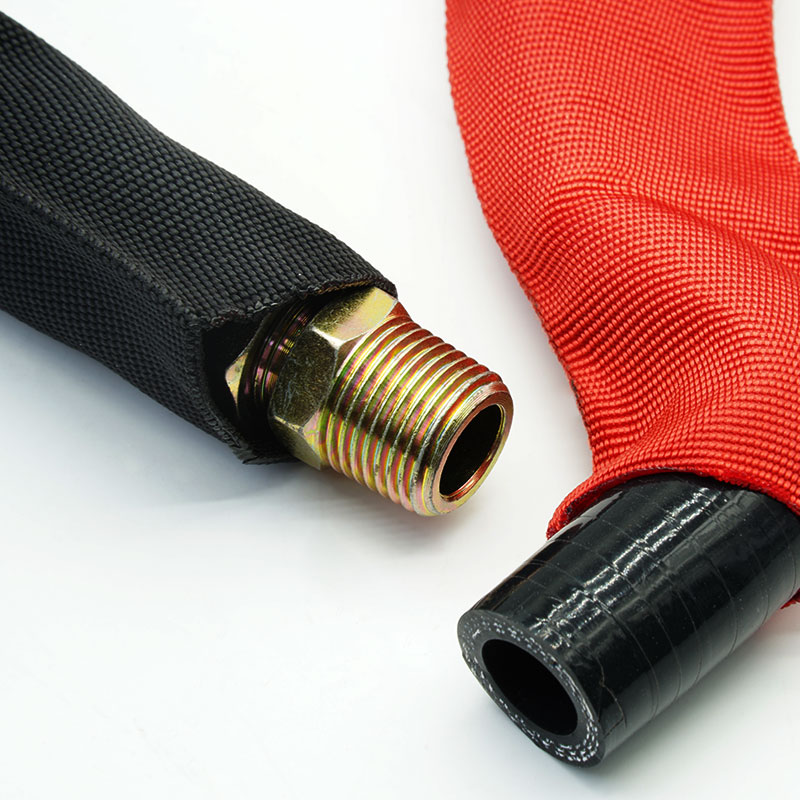

4. Multiple Hose Coverage
Can be sized for individual hoses or bundled hose assemblies, subject to the overall outside diameter and installation requirements.
5. Multiple Size and Thickness Options
Available in different diameters and nominal wall thicknesses to accommodate varying levels of everyday mechanical protection.
6. Easy Installation and Maintenance
The lightweight textile construction allows convenient fitting, removal, and replacement during hose assembly or routine maintenance.
| Material |
Polyester
|
| Working Temperature |
-40°C to +150°C |
| Melting Point |
220±10°C |
| Flammability |
FMVSS 302 |
| MSHA Compliance |
Refer to MSHA IC293/01 |
| Blasting Resistance |
Refer to ISO3457 |
| Abrasion Resistance |
Refer to ISO 6945 |
| Anti-leakage |
Conform to SAE J343 |
| UV Resistant |
Conform to BS EN13758-1 |
| Standard Color |
Black |
| Cutting Tool |
Hot knife |
Specifications
|
Part No
|
I.D
(mm)
|
Flat Width
(mm)
|
Wall
Thickness
(mm)
|
Packing
Length
(m/spool)
|
| HPS-PES-S-010-BK-T12 |
10 |
20 |
1.2±0.1
|
50 |
| HPS-PES-S-012-BK-T12 |
12 |
24 |
1.2±0.1
|
50 |
| HPS-PES-S-014-BK-T12 |
14 |
25 |
1.2±0.1 |
50 |
| HPS-PES-S-017-BK-T12 |
17 |
30 |
1.2±0.1 |
50 |
| HPS-PES-S-020-BK-T12 |
20 |
35 |
1.2±0.1 |
50 |
HPS-PES-S-023-BK-T12
|
23 |
39 |
1.2±0.1 |
50 |
| HPS-PES-S-025-BK-T12 |
25 |
42 |
1.2±0.1 |
50 |
HPS-PES-S-027-BK-T12
|
27 |
46 |
1.2±0.1 |
50 |
HPS-PES-S-031-BK-T12
|
31 |
52 |
1.2±0.1 |
50 |
| HPS-PES-S-033-BK-T12 |
33 |
55 |
1.2±0.1 |
50 |
HPS-PES-S-036-BK-T12
|
36 |
60 |
1.2±0.1 |
50 |
| HPS-PES-S-040-BK-T12 |
40 |
66 |
1.2±0.1 |
50 |
HPS-PES-S-044-BK-T12
|
44 |
72 |
1.2±0.1 |
50 |
| HPS-PES-S-047-BK-T12 |
47 |
77 |
1.2±0.1 |
50 |
| HPS-PES-S-050-BK-T12 |
50 |
80 |
1.2±0.1 |
50 |
| HPS-PES-S-053-BK-T12 |
53 |
86 |
1.2±0.1 |
50 |
HPS-PES-S-056-BK-T12
|
56 |
91 |
1.2±0.1
|
50 |
HPS-PES-S-060-BK-T12
|
60 |
97 |
1.2±0.1
|
50 |
HPS-PES-S-062-BK-T12
|
62 |
100 |
1.2±0.1
|
50 |
| HPS-PES-S-066-BK-T12 |
66 |
107 |
1.2±0.1
|
50 |
| HPS-PES-S-073-BK-T12 |
73 |
118 |
1.2±0.1
|
50 |
HPS-PES-S-078-BK-T12
|
78 |
126 |
1.2±0.1
|
50 |
| HPS-PES-S-080-BK-T12 |
80 |
130 |
1.2±0.1
|
50 |
HPS-PES-S-085-BK-T12
|
85 |
137 |
1.2±0.1
|
50 |
| HPS-PES-S-090-BK-T12 |
90 |
145 |
1.2±0.1
|
50 |
HPS-PES-S-093-BK-T12
|
93 |
149 |
1.2±0.1
|
50 |
HPS-PES-S-102-BK-T12
|
102 |
165 |
1.2±0.1
|
50 |
HPS-PES-S-106-BK-T12
|
106 |
170 |
1.2±0.1
|
50 |
| HPS-PES-S-112-BK-T12 |
112 |
179 |
1.2±0.1
|
50 |
| HPS-PES-S-127-BK-T12 |
127 |
206 |
1.2±0.1
|
50 |
Typical Applications
Construction Machinery
Protects hydraulic hoses on excavators, loaders, and other construction equipment from abrasion caused by contact with machine components.
Material Handling Equipment
Suitable for forklifts, lifting platforms, and handling machinery where hydraulic hoses operate near moving components.
Forestry Machinery
Helps protect hydraulic hoses on forestry harvesters, log loaders, and other equipment operating in demanding working environments.
Hydraulic Hose Bundling
Organizes multiple hydraulic hoses into a single bundle, helping manage hose routing and reduce contact-related wear between adjacent lines.
Measure the maximum outside diameter of the individual hose or complete hose bundle, including fittings, clamps and local transitions. Choose a sleeve that installs without excessive stretching yet remains close enough to avoid snagging or uncontrolled movement. Review bend radius, flex frequency, rubbing points, temperature, hydraulic fluids, outdoor exposure and the method used to secure each end. For applications requiring protection against high-pressure fluid spray or hose bursts, the sleeve's suitability should be verified under the relevant operating and test conditions.
Customization Available
• Diameter and Bundle Fit - Select suitable sleeve sizes based on the outside diameter of individual hoses or multi-hose bundles.
• Cut Lengths and Tolerances - Customized cut lengths and tolerance control to meet the requirements of specific machine zones, hose kits, or assembly stations.
• Color and Identification - Black is the standard color; printed labels or other identification options can be evaluated upon request.

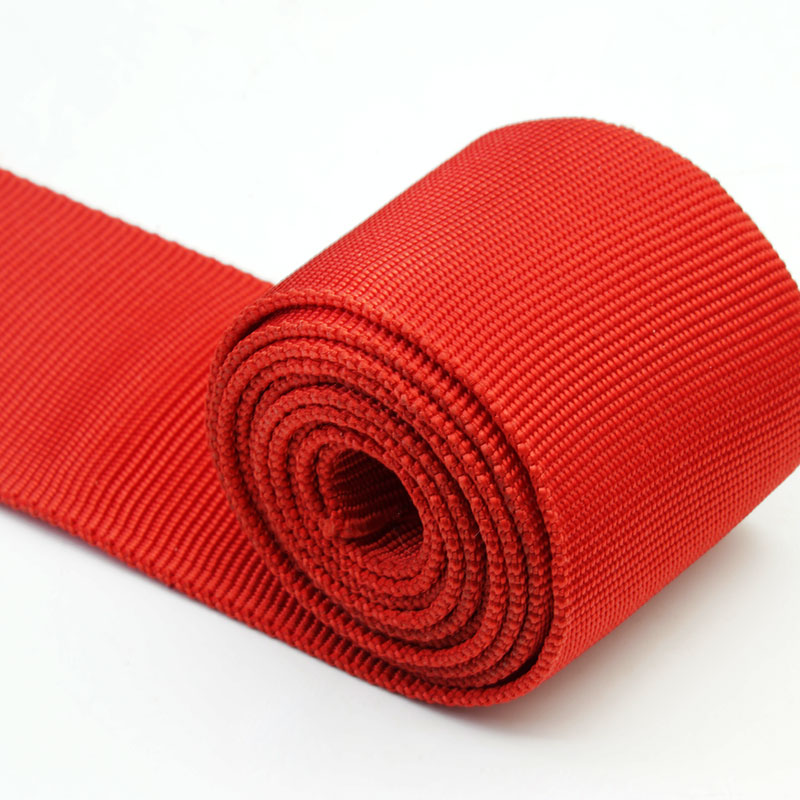

• Packaging - Available in rolls, bags, kits, and customized OEM cartons.
• Incoming yarn verification - Material identity and agreed purchasing requirements are checked before production.
• Wall and construction checks - Nominal thickness and textile build are measured according to the approved inspection plan.
• Size and fit review - Finished diameter and sample fit are compared with the confirmed hose or bundle dimensions.
• Workmanship inspection - The sleeve is examined for yarn damage, contamination, uneven coverage and unacceptable openings.
• Order conformity - Length, marking, end finish, quantity and packaging are checked against the released order.
Frequently Asked Questions
01. What are the advantages of a 1.2 mm wall thickness?
The thicker textile wall provides additional sacrificial material in areas exposed to frequent rubbing or mechanical contact while maintaining flexibility for practical hose routing.
02. Is polyester hydraulic hose sleeving suitable for moving hydraulic assemblies?
Yes, it can be used on moving hose assemblies when the bend radius, movement frequency, contact surfaces, and sleeve retention are properly evaluated.
03. Is the sleeve resistant to hydraulic oil and chemicals?
Polyester offers resistance to certain oils and industrial substances, but compatibility depends on the specific fluid, concentration, temperature, and exposure duration.
04. How often should hydraulic hose protective sleeving be inspected?
Inspect it during routine equipment maintenance and replace it if excessive wear, tearing, displacement, or exposed hose sections are observed.
Request a Sample or Quote
Send the hose or bundle outside diameter, routing conditions, abrasion points, temperature, fluid exposure, finished length and order quantity. MJ FLEX will review the fit and arrange a HPS-PES-S-T12 sample or quotation.
