• Reduce exposure to concentrated fluid jets
The textile wall is designed to disrupt and diffuse discharge from a failed hose when used within the verified test conditions.
• Guide leakage away from the failure point

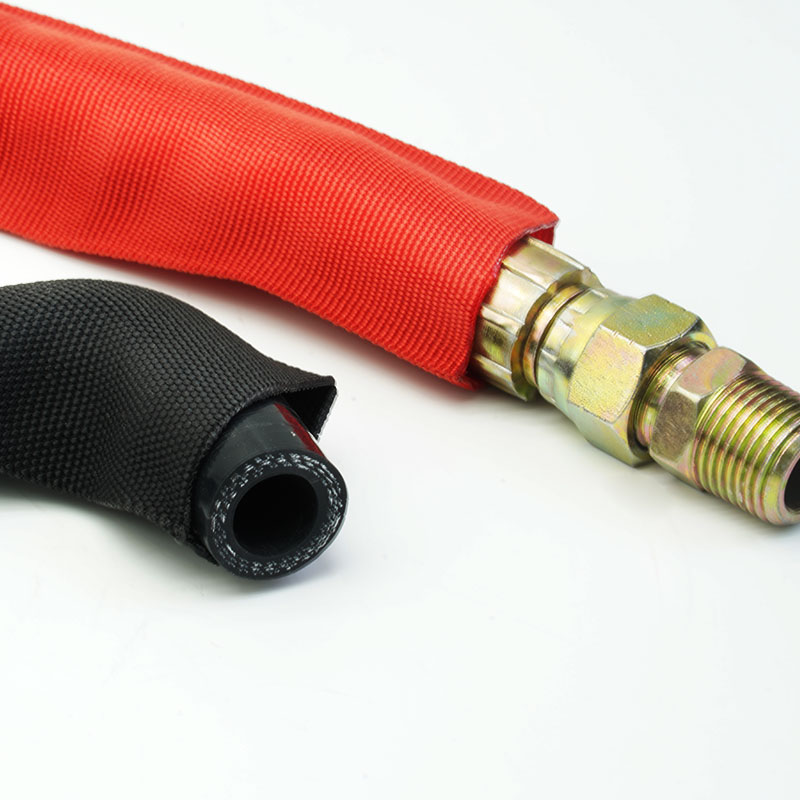

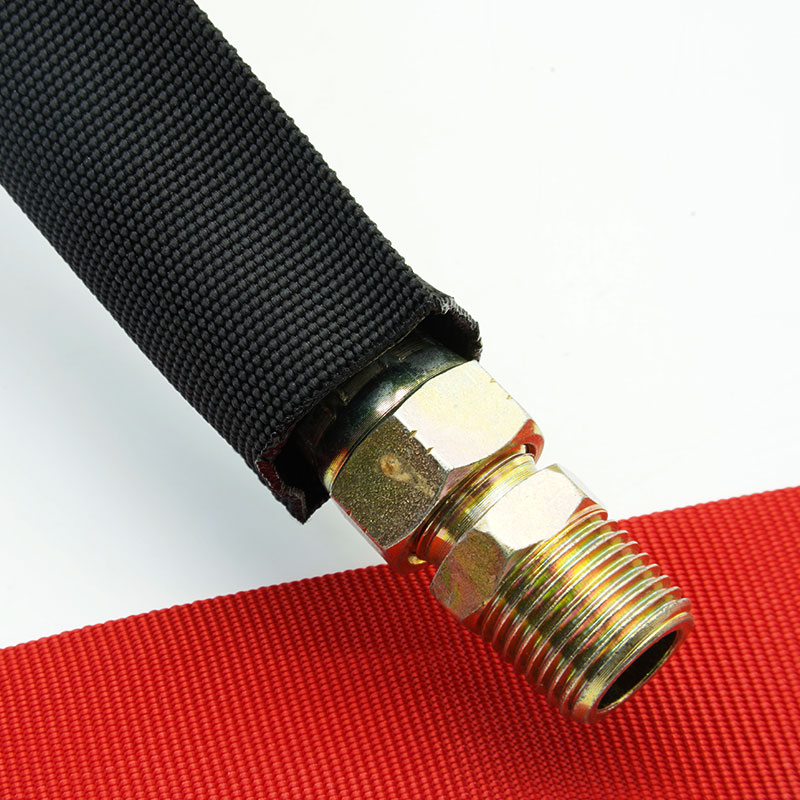

A correctly installed sleeve can channel released fluid along its length instead of allowing an unrestricted spray at the rupture location.
• Combine failure mitigation with wear protection
The 1.2 mm nylon construction also separates the hose cover from surrounding surfaces during daily operation.
1. Nominal 1.2 mm wall
Provides the textile mass required for this heavier hydraulic protection construction.

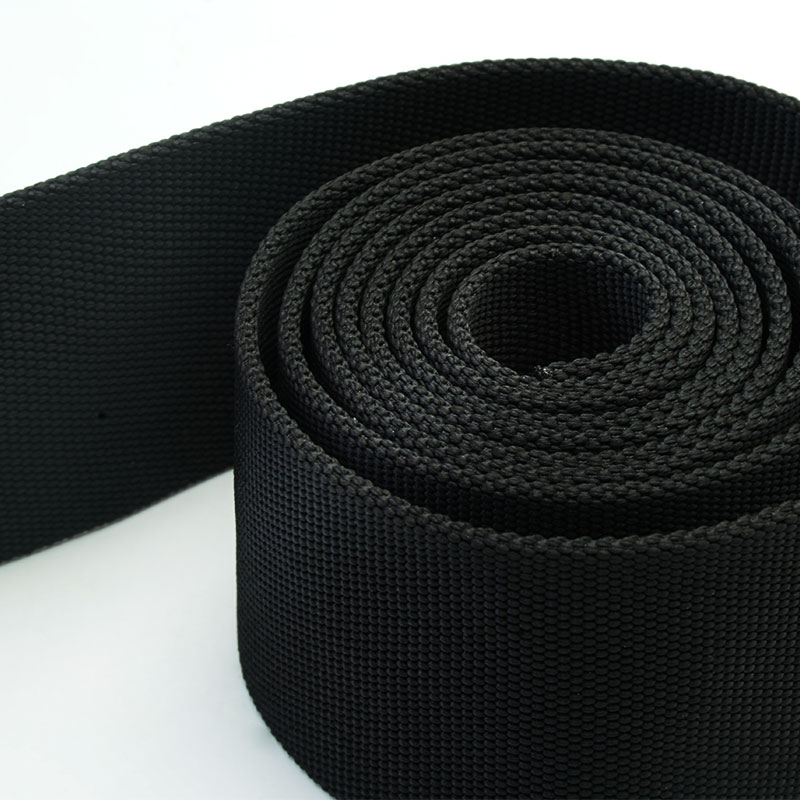

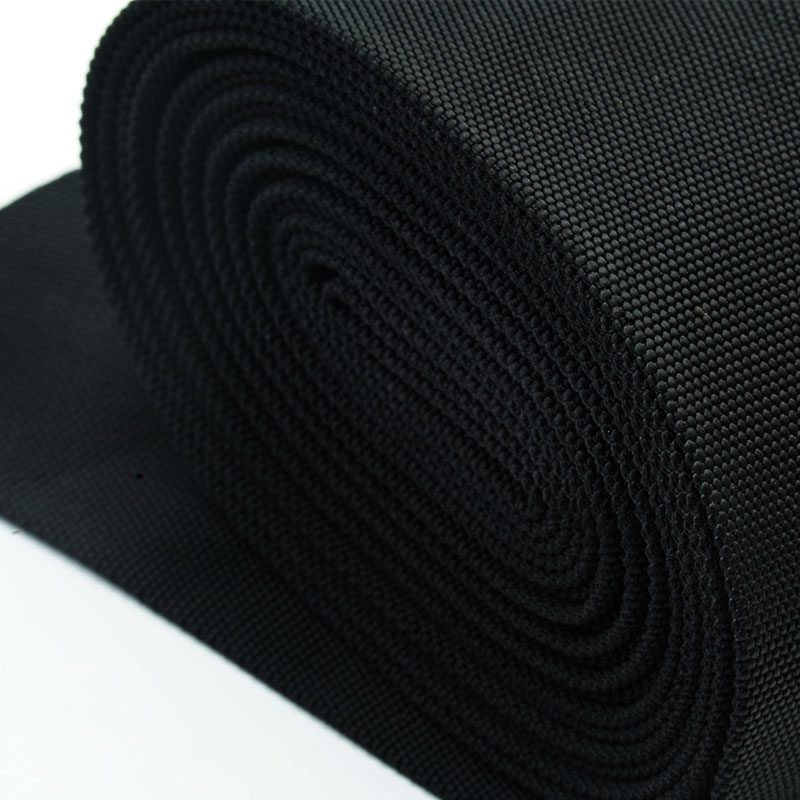

2. High-strength nylon textile
Forms a flexible energy-dissipating layer around the hydraulic hose assembly.
3. Jet diffusion function
Helps break up a focused release and reduce direct line-of-sight spray under validated conditions.
4. Controlled fluid routing
Provides a path for leaked fluid to travel toward an observable and less exposed location.
5. Abrasion and scuff protection
Shields the hose cover from external rubbing before a pressure failure occurs.
6. OEM supply flexibility
Available in application-specific diameters, cut lengths, markings, end details and packing formats.
| Material |
Nylon multifilament
|
| Working Temperature |
-40°C to +125°C |
| Melting Point |
220±10°C |
| Flammability |
FMVSS 302 |
| MSHA Compliance |
Refer to MSHA IC293/01 |
| Blasting Resistance |
Refer to ISO 3457 |
| Abrasion Resistance |
Refer to ISO 6945 |
| Anti-leakage |
Conform to SAE J343 |
| UV Resistant |
Conform to BS EN13758-1 |
| Standard Color |
Black |
| Cutting Tool |
Hot Knife |
Specifications
|
Part No
|
I.D
(mm)
|
Flat Width
(mm)
|
Wall
Thickness
(mm)
|
Packing
Length
(m/spool)
|
| HPS-NY-S-010-BK-T12 |
10 |
20 |
1.2±0.1
|
50 |
| HPS-NY-S-014-BK-T12 |
14 |
25 |
1.2±0.1 |
50 |
| HPS-NY-S-017-BK-T12 |
17 |
30 |
1.2±0.1 |
50 |
| HPS-NY-S-020-BK-T12 |
20 |
35 |
1.2±0.1 |
50 |
| HPS-NY-S-023-BK-T12 |
23 |
39 |
1.2±0.1 |
50 |
| HPS-NY-S-025-BK-T12 |
25 |
42 |
1.2±0.1 |
50 |
| HPS-NY-S-027-BK-T12 |
27 |
46 |
1.2±0.1 |
50 |
| HPS-NY-S-031-BK-T12 |
31 |
52 |
1.2±0.1 |
50 |
| HPS-NY-S-033-BK-T12 |
33 |
55 |
1.2±0.1 |
50 |
| HPS-NY-S-036-BK-T12 |
36 |
60 |
1.2±0.1 |
50 |
| HPS-NY-S-040-BK-T12 |
40 |
66 |
1.2±0.1 |
50 |
HPS-NY-S-044-BK-T12
|
44 |
72 |
1.2±0.1 |
50 |
| HPS-NY-S-047-BK-T12 |
47 |
77 |
1.2±0.1 |
50 |
| HPS-NY-S-050-BK-T12 |
50 |
80 |
1.2±0.1 |
50 |
| HPS-NY-S-053-BK-T12 |
53 |
86 |
1.2±0.1 |
50 |
HPS-NY-S-056-BK-T12
|
56 |
91 |
1.2±0.1 |
50 |
HPS-NY-S-060-BK-T12
|
60 |
97 |
1.2±0.1 |
50 |
HPS-NY-S-062-BK-T12
|
62 |
100 |
1.2±0.1 |
50 |
HPS-NY-S-066-BK-T12
|
66 |
107 |
1.2±0.1 |
50 |
HPS-NY-S-073-BK-T12
|
73 |
118 |
1.2±0.1 |
50 |
HPS-NY-S-078-BK-T12
|
78 |
126 |
1.2±0.1 |
50 |
HPS-NY-S-085-BK-T12
|
85 |
137 |
1.2±0.1 |
50 |
HPS-NY-S-090-BK-T12
|
90 |
145 |
1.2±0.1 |
50 |
HPS-NY-S-093-BK-T12
|
93 |
149 |
1.2±0.1 |
50 |
HPS-NY-S-102-BK-T12
|
102 |
165 |
1.2±0.1 |
50 |
HPS-NY-S-106-BK-T12
|
106 |
170 |
1.2±0.1 |
50 |
HPS-NY-S-112-BK-T12
|
112 |
179 |
1.2±0.1 |
50 |
| HPS-NY-S-127-BK-T12 |
127 |
206 |
1.2±0.1 |
50 |
Typical Applications
Construction and Earthmoving Equipment
Provides external abrasion protection for hydraulic hoses used in excavators, loaders and bulldozers, helping reduce wear caused by vibration, friction and contact with machine components.
Cranes and Lifting Equipment
Helps protect hydraulic hoses around booms, lifting mechanisms and moving joints while maintaining flexibility during equipment operation.
Mining and Heavy-Duty Machinery
Provides protective coverage for hydraulic hose assemblies exposed to friction, vibration and mechanical wear in mining and heavy industrial applications.
Material Handling Equipment
Protects hydraulic hoses in forklifts, aerial work platforms and other mobile equipment exposed to frequent movement, bending and contact with surrounding structures.
Measure the maximum outside diameter of the individual hose or complete hose bundle, including fittings, clamps and local transitions. Choose a sleeve that installs without excessive stretching yet remains close enough to avoid snagging or uncontrolled movement. Review bend radius, flex frequency, rubbing points, temperature, hydraulic fluids, outdoor exposure and the method used to secure each end. For applications requiring protection against high-pressure fluid spray or hose bursts, the sleeve's suitability should be verified under the relevant operating and test conditions.
Customization Available
• Diameter and Bundle Fit - Select suitable sleeve sizes based on the outside diameter of individual hoses or multi-hose bundles.
• Cut Lengths and Tolerances - Customized cut lengths and tolerance control to meet the requirements of specific machine zones, hose kits, or assembly stations.
• Color and Identification - Black is the standard color; printed labels or other identification options can be evaluated upon request.
• Packaging - Available in rolls, bags, kits, and customized OEM cartons.
• Incoming yarn verification - Material identity and agreed purchasing requirements are checked before production.
• Wall and construction checks - Nominal thickness and textile build are measured according to the approved inspection plan.
• Size and fit review - Finished diameter and sample fit are compared with the confirmed hose or bundle dimensions.
• Workmanship inspection - The sleeve is examined for yarn damage, contamination, uneven coverage and unacceptable openings.
• Order conformity - Length, marking, end finish, quantity and packaging are checked against the released order.
Frequently Asked Questions
01. What does a hydraulic hose burst protection sleeve do?
It is designed to surround a hydraulic hose, diffuse a concentrated release and route leaking fluid along the sleeve under defined test and installation conditions.
02. Does the 1.2 mm wall guarantee a pressure rating?
No. The 1.2 mm wall thickness only indicates the sleeve's structural thickness and does not represent a specific pressure rating.
03. Can the sleeve prevent hydraulic hose failure?
No. It is a consequence-mitigation product. Correct hose selection, assembly, routing, inspection and replacement remain essential.
04. What information is required for technical review?
Provide hose OD and type, fittings, working and peak pressure, fluid, temperature, routing, movement, required protected length, termination method, test standard and annual quantity.
Request a Sample or Quote
Send the hose or bundle outside diameter, routing conditions, abrasion points, temperature, fluid exposure, finished length and order quantity. MJ FLEX will review the fit and arrange a HPS-NY-S-T12 sample or quotation.
