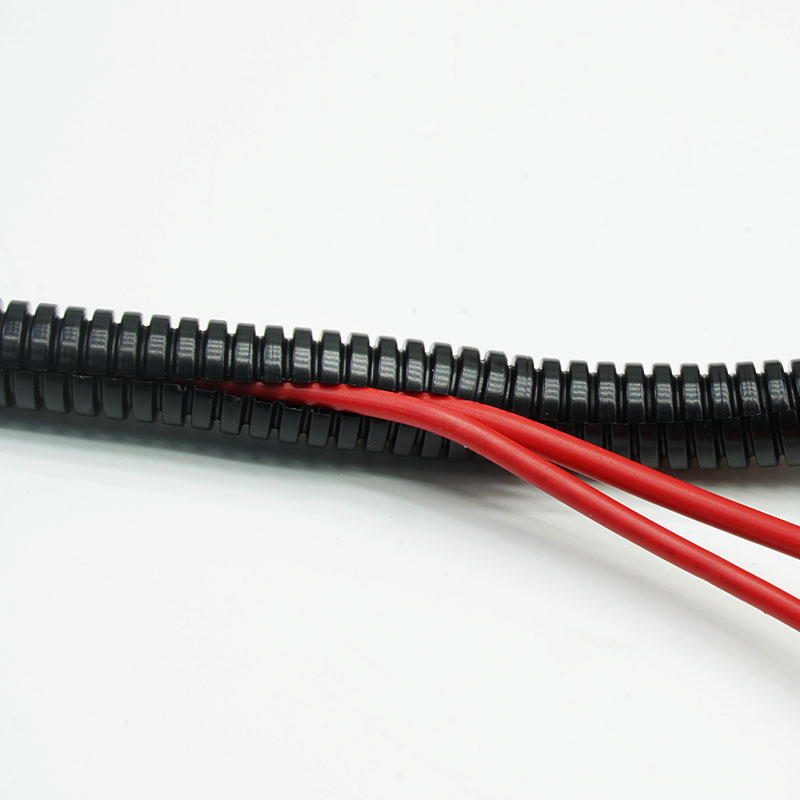

•Easy Installation with Split Design
The longitudinal split design allows the tubing to be fitted around existing cable bundles without threading wires through the entire tube, simplifying installation and maintenance.
•Reliable Abrasion Protection
The polyethylene corrugated tubing helps reduce abrasion caused by contact with brackets, equipment housings and surrounding components, providing everyday mechanical protection for cables.
•Impact and Scratch Resistance
The tubing helps protect cables from everyday impacts and scratches, making it suitable for cable routes exposed to routine mechanical contact.
•Flexible Cable Routing
The flexible corrugated structure follows practical cable routing paths and accommodates routine bends and different installation spaces.
•Lightweight Cable Organization
The tubing groups and covers multiple wires, helping keep cable assemblies organized while adding an external protective layer.
•Polyethylene Material
Manufactured from polyethylene (PE), the tubing is designed for general cable organization and external mechanical protection under light-to-medium loads.

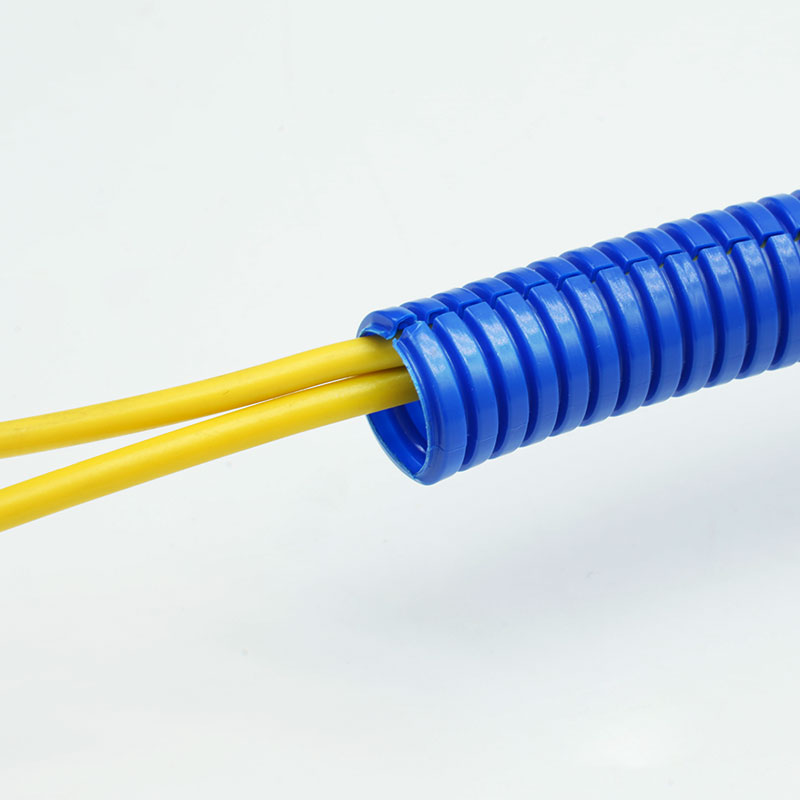

•Longitudinal Split Construction
The longitudinal split allows the tubing to be fitted around installed cable bundles, supporting retrofit work, inspection and maintenance.

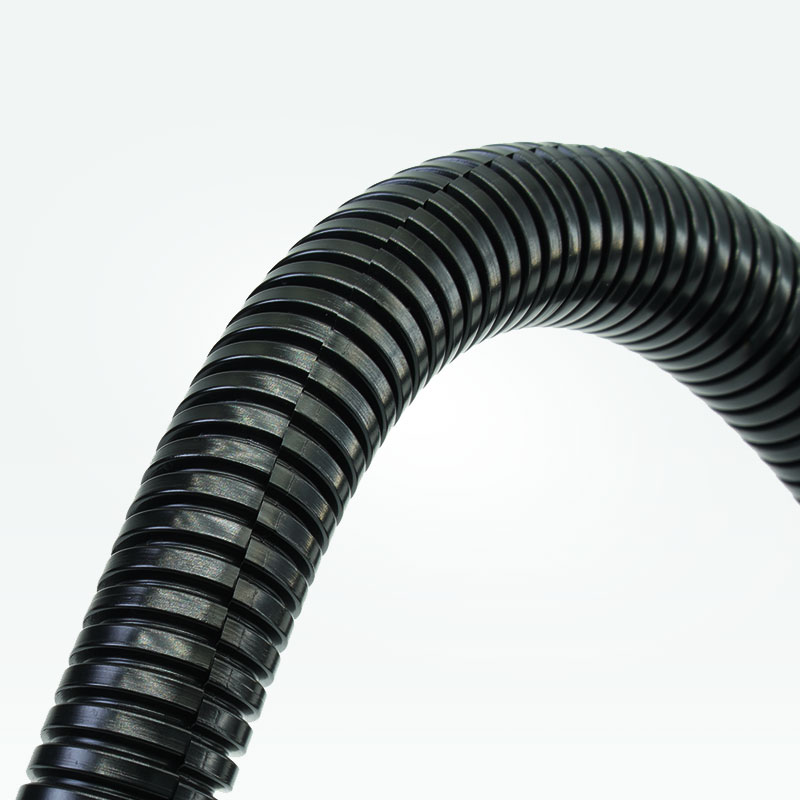

•Corrugated Tubular Profile
The corrugated profile combines structural support with flexibility for general cable routing inside equipment.
•Abrasion Resistance
Helps reduce surface wear caused by contact between cable bundles and surrounding components.
•Impact Resistance
Provides an additional protective covering for enclosed wires, helping reduce the effects of everyday impacts.
| Material |
Polyethylene |
| Style |
Split |
| Working Temperature |
−40°C to +80°C |
| Melting Point |
135 ± 10°C |
| Heat Aging Resistance |
No embrittlement and chalking after test at 150℃ for 240h per QC/T29106 |
| Flammability |
UL94 V2 |
| RoHS Compliance |
Yes |
| Standard Color |
Black |
| Part No |
I.D
(mm) |
O.D
(mm) |
Wall
Thickness
(mm) |
Packing
Length
(m/spool) |
| WL-PE-S-4.5*7.0-BK |
4.5 ± 0.5 |
7.0 ± 0.5 |
0.25 ± 0.1 |
500 |
| WL-PE-S-5.5*7.5-BK |
5.5 ± 0.5 |
7.5 ± 0.5 |
0.25 ± 0.1 |
500 |
| WL-PE-S-6.5*9.2-BK |
6.5 ± 0.5 |
9.2 ± 0.5 |
0.25 ± 0.1 |
500 |
| WL-PE-S-7.5*10.5-BK |
7.5 ± 0.5 |
10.5 ± 0.5 |
0.25 ± 0.1 |
400 |
| WL-PE-S-8.5*11.5-BK |
8.5 ± 0.5 |
11.5 ± 0.5 |
0.25 ± 0.1 |
400 |
| WL-PE-S-10.0*13.0-BK |
10.0 ± 0.5 |
13.0 ± 0.5 |
0.25 ± 0.1 |
300 |
| WL-PE-S-12.0*15.8-BK |
12.0 ± 0.5 |
15.8 ± 0.5 |
0.30 ± 0.1 |
200 |
| WL-PE-S-13.0*17.4-BK |
13.0 ± 0.5 |
17.4 ± 0.5 |
0.30 ± 0.1 |
200 |
| WL-PE-S-14.5*18.5-BK |
14.5 ± 0.5 |
18.5 ± 0.5 |
0.30 ± 0.1 |
200 |
| WL-PE-S-16.0*20.0-BK |
16.0 ± 0.5 |
20.0 ± 0.5 |
0.30 ± 0.1 |
150 |
| WL-PE-S-17.0*21.2-BK |
17.0 ± 0.5 |
21.2 ± 0.5 |
0.30 ± 0.1 |
150 |
| WL-PE-S-19.0*23.5-BK |
19.0 ± 0.5 |
23.5 ± 0.5 |
0.30 ± 0.1 |
100 |
| WL-PE-S-20.5*25.0-BK |
20.5 ± 0.5 |
25.0 ± 0.5 |
0.35 ± 0.1 |
100 |
| WL-PE-S-21.0*25.8-BK |
21.0 ± 0.5 |
25.8 ± 0.5 |
0.35 ± 0.1 |
100 |
| WL-PE-S-23.0*28.0-BK |
23.0 ± 0.5 |
28.0 ± 0.5 |
0.35 ± 0.1 |
100 |
| WL-PE-S-25.0*31.5-BK |
25.0 ± 0.5 |
31.5 ± 0.5 |
0.35 ± 0.1 |
50 |
| WL-PE-S-29.0*34.5-BK |
29.0 ± 0.5 |
34.5 ± 0.5 |
0.40 ± 0.1 |
50 |
| WL-PE-S-32.0*38.0-BK |
32.0 ± 0.5 |
38.0 ± 0.5 |
0.40 ± 0.1 |
50 |
| WL-PE-S-36.0*42.5-BK |
36.0 ± 0.5 |
42.5 ± 0.5 |
0.40 ± 0.1 |
40 |
| WL-PE-S-42.0*48.0-BK |
42.0 ± 0.5 |
48.0 ± 0.5 |
0.45 ± 0.1 |
30 |
| WL-PE-S-48.0*54.5-BK |
48.0 ± 0.5 |
54.5 ± 0.5 |
0.45 ± 0.1 |
30 |
•Automotive Wiring Harnesses
WL-PE-S helps organize and protect automotive wiring harnesses from everyday abrasion, scratches and impacts. Its split construction allows the tubing to be fitted around existing wire bundles.
•Electrical Equipment
Suitable for organizing and covering wiring inside electrical equipment, helping maintain orderly cable routing and providing additional external mechanical protection.
•Industrial Automation
The flexible split corrugated design supports cable management in automation equipment and control systems where convenient installation and routine mechanical protection are required.
•Machinery and Equipment Wiring
Provides external protection for cables routed around machine frames, brackets and equipment housings, helping reduce wear caused by contact with surrounding components.
•Electronic Equipment Assemblies
Helps group and cover multiple wires in electronic equipment, supporting compact cable routing and easier maintenance.
Measure the total outside diameter of the cable bundle and select a suitable WL-PE-S size that provides adequate coverage without excessive looseness. Consider the cable routing path, available installation space and the amount of mechanical contact expected during operation.The split construction allows the tubing to be installed around existing wires, making it useful for retrofit and maintenance work. Check that the opening and tubing dimensions are suitable for the cable bundle and that the finished installation remains secure along the route.Confirm the operating temperature is within the specified range of −40°C to +80°C. If the tubing may contact oils, acids, alkalis or other chemicals, verify compatibility under the actual service conditions before selection.
•Size Selection - A range of standard inside diameters, outside diameters and wall thicknesses is available to accommodate different cable bundle sizes and installation requirements.

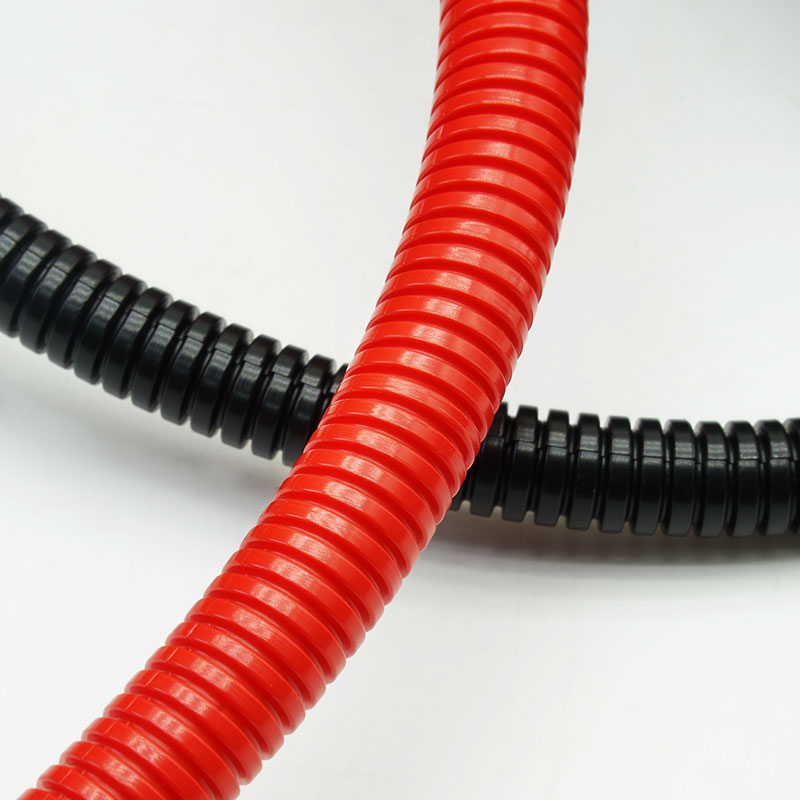

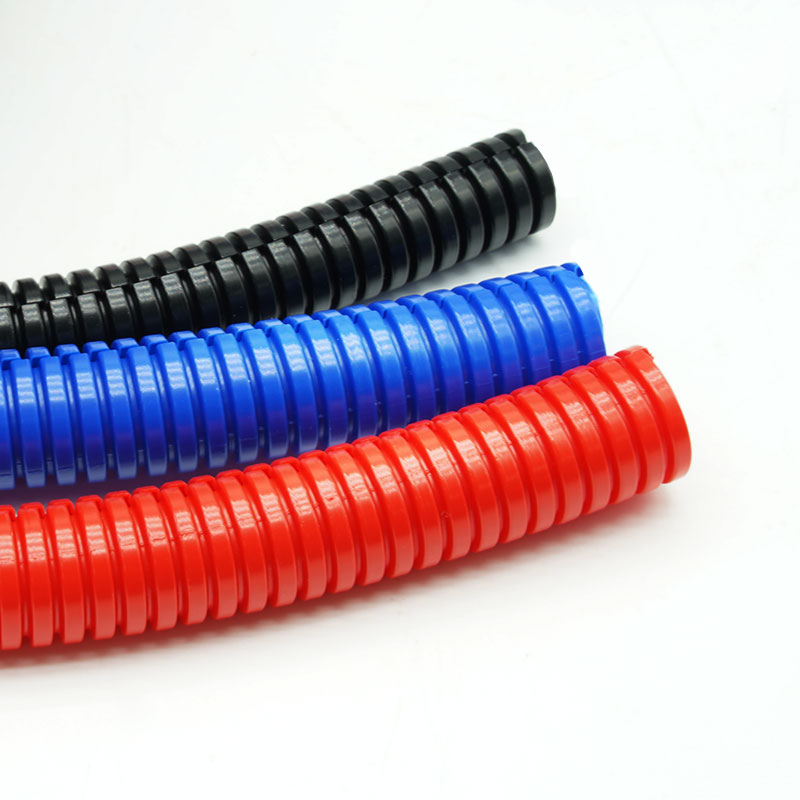

•Color Options - Additional colors are available for custom order, subject to material availability, production feasibility and order quantity.
•Packaging - Spool length, packing quantity, product labels and outer packaging requirements can be confirmed according to the order.
•Raw Material Verification - Polyethylene raw materials are checked against approved material specifications and production requirements to support consistent product quality.
•Dimensional Inspection - Inside diameter, outside diameter and wall thickness are checked against the specified dimensions and tolerances for each part number.
•Corrugated Profile Inspection - The tubing profile and structural consistency are inspected to support proper cable coverage and installation.
•Split Opening Inspection - The longitudinal opening is checked for consistency to support convenient installation around existing cable bundles.
•Surface and Appearance Inspection - Products are checked for visible cracks, deformation, contamination and other defects that may affect appearance or normal use.
•Final Product and Packaging Inspection - Part numbers, dimensions, quantities, spool lengths and packaging details are verified against order requirements before shipment.
Frequently Asked Questions
1. What is WL-PE-S polyethylene split wire loom tubing used for?
WL-PE-S is used to organize and protect cable bundles in automotive wiring, electrical equipment, automation systems and machinery. Its split construction makes it convenient for general cable protection and maintenance.
2. Is WL-PE-S suitable for automotive wiring harnesses?
It can be used to organize and protect automotive wiring harnesses where its temperature range and mechanical protection characteristics meet the application requirements.
3. How do I select the correct tubing size?
Measure the total outside diameter of the cable bundle and compare it with the available tubing dimensions. Consider the desired coverage, installation space and routing conditions.
4. Can WL-PE-S be installed without disconnecting existing wires?
The split design allows the tubing to be fitted around existing cable bundles without threading the wires through the entire tube. The finished installation should be checked to ensure adequate coverage and retention.
Request a Sample or Quote
Please provide your cable bundle diameter, required tubing dimensions, operating temperature, installation conditions, required spool or cut length, estimated order quantity and packaging requirements.MJ FLEX can help evaluate suitable WL-PE-S sizes, confirm standard specifications and packing lengths, and provide samples or quotations based on your project requirements.
